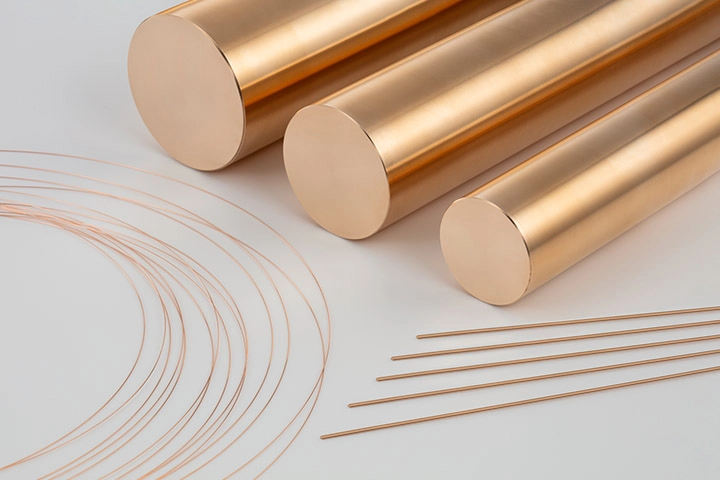

Beryllium Copper Strip (Strip, Plate, Rod and Wire forms)

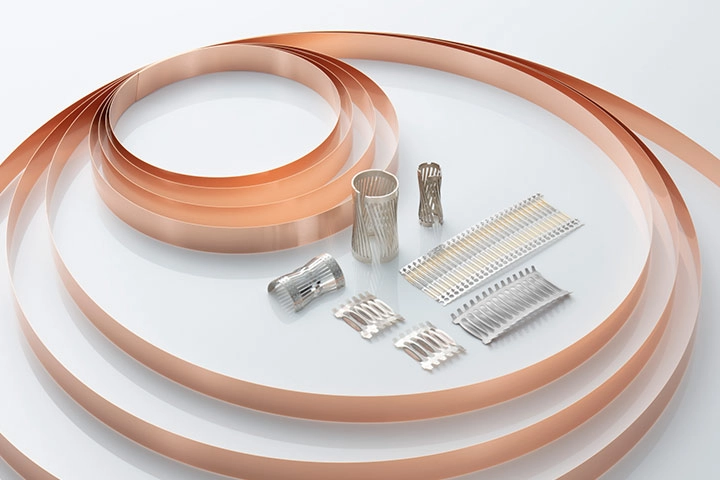

Widely used for contact springs, these core NGK products, available as strips, plates, rods, or wire, offer an ideal combination of properties such as tensile strength, electrical conductivity, fatigue strength, thermal stability, bending formability, and corrosion resistance.

Features

Beryllium Copper is a copper alloy with the optimum combination of mechanical and physical properties such as tensile strength, fatigue strength, performance under elevated temperatures, electrical conductivity, bending formability, corrosion resistance and non-magnetic. Beryllium Copper is widely used as contact springs in various applications like connectors, switches, relays, etc. NGK offers a variety of Beryllium Copper alloys in several tempers to cover different applications. Our Beryllium Copper products are available in strip, plate, rod and wire forms.

Properties of Beryllium Copper

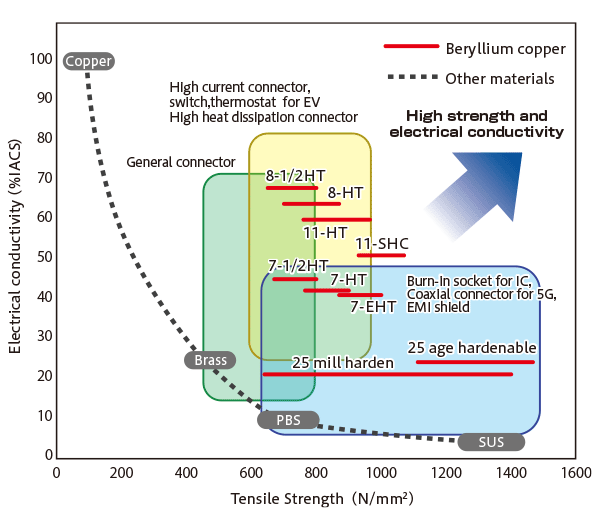

Tensile Strength vs. Electrical Conductivity

Tensile Strength vs. Electrical Conductivity
Note: These are typical values as measured by NGK. They do not constitute guarantees.

Chemical Composition

NGK Alloy Chemical Composition [wt%]
Alloy 25 Be
Ni+Co
Ni+Co+Fe
Cu+Be+Ni+Co+Fe		 1.80-2.00
0.20min.
0.6max.
99.5min.
Alloy 8
Alloy 11		 Be
Ni
Cu+Be+Ni		 0.20-0.60
1.40-2.20
99.5min.
Alloy 7 Be
Ni+Co
Al
Cu+Be+Ni+Co+Al		 0.20-0.40
1.80-2.50
0.6max.
99.0min.
  • *The chemical composition of beryllium copper alloys is tested using optical atomic emission spectrometry as specified by NGK. Cu is considered the remainder after subtracting other elements.

Physical Properties

Item NGK Alloy 25 NGK Alloy 8·11 NGK Alloy 7
Melting Point (solidus) [℃] 865 1004 1050
Melting Point (liquidus) [℃] 980 1070 1081
Density [g/cm3]
at 20℃		 8.36 8.82 8.71
Specific Heat [J/(kg・K)]
at 20℃		 419 419 419
Thermal Expansion Coefficient [/℃]
at 20〜300℃		 17.8×10-6 17.6×10-6 17.6×10-6
Modulus of Elasticity [kN/mm2] 127 132 127
Modulus of Rigidity [kN/mm2] 49 52 49
Poidon's Ratio 0.3 0.3 0.3
Magnetic Permeability [μ(μ=1+4πk)] 1.000042 1.000031 1.000027

Electrical conductivity and thermal conductivity * （at 20℃）

  NGK Alloy 25 NGK Alloy 8 NGK Alloy 11 NGK Alloy 7
Age Hardenable Mill hardened 8-1/2HT 8-HT 11-HT 11-SHC 7-1/2HT 7-HT 7-EHT
Thermal conductivity [W/(m・K)] 99 85 298 280 262 221 194 180 176
Electrical conductivity [%IACS] 24 21 68 64 60 51 45 42 41

Forms of Copper Beryllium Products

Strip: Range of Standard Production

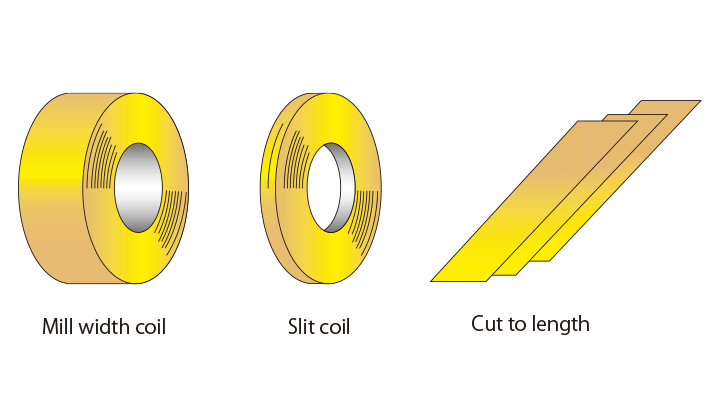

Mill width coil, Slit coil, Cut to length
Mill width coil
Coil Thickness 0.05 - 2.0mm
Width max. 200mm
Cut to length Thickness 0.05 - 1.0mm
Length max. 1200 mm
  • *Please contact us for special requirement.
  • *Alloy 7 and 8 are available in standard thickness dimensions.
  • *The range may vary depending on alloy and temper.

Rod: Range of Standard Production

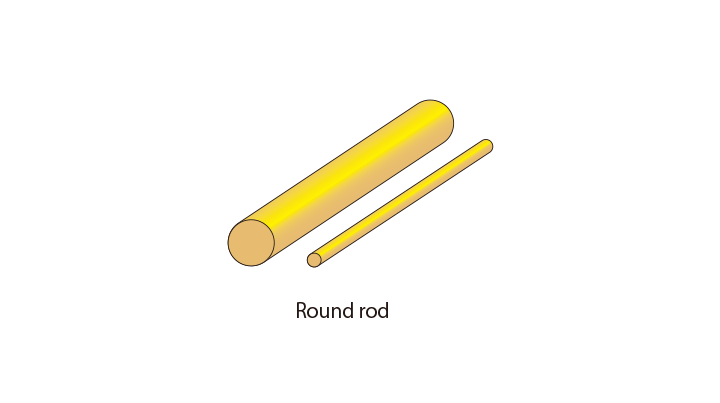

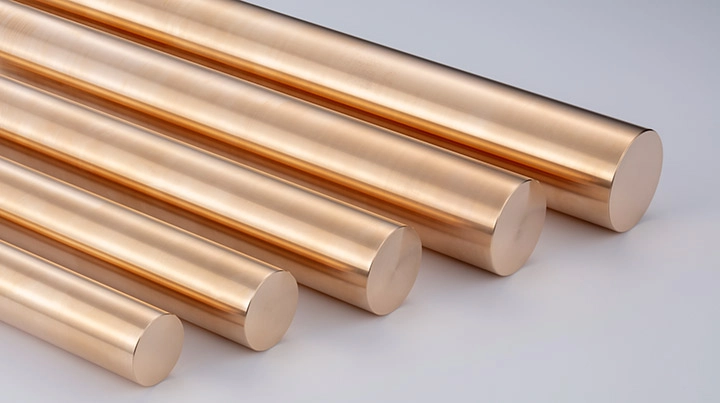

ProductionRound rodin
ProductionRound rodin
Diameter 1 - 120mm

Wire: Range of Standard Production

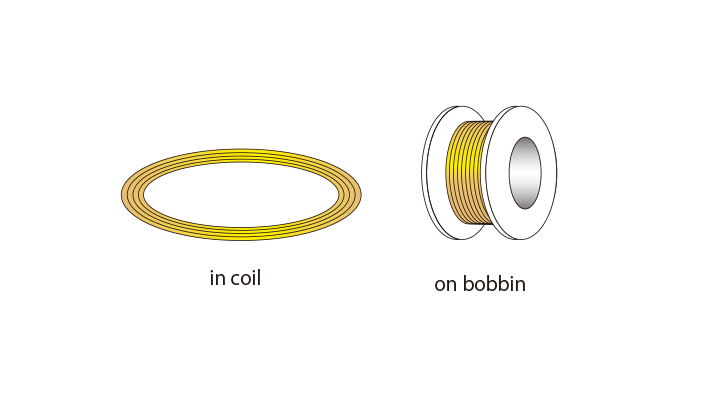

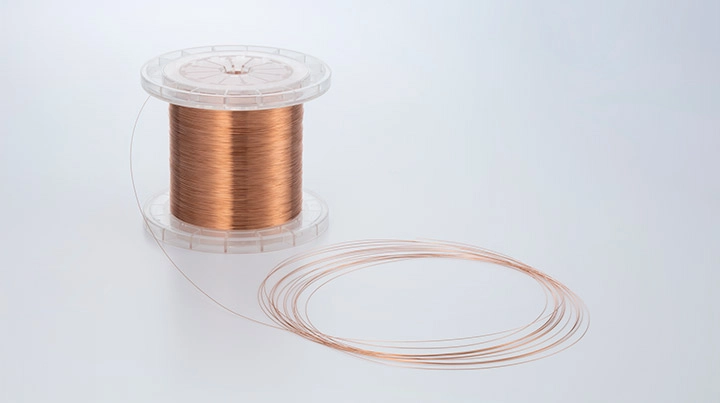

in coil, on bobbin
in coil, on bobbin
Diameter in coil 0.2 - 1.0mm
on bobbin 0.05 - 0.15mm

Technical data

Product Overview of Copper Beryllium

Featured Products

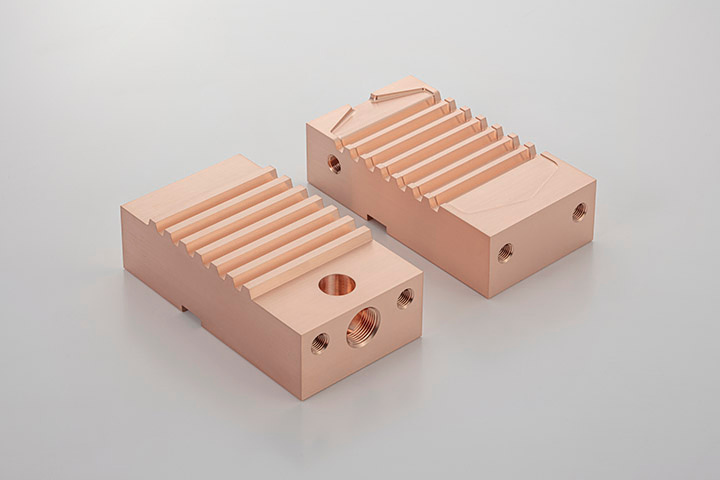

Chill Vent

Chillers are used to vent gas in the high-pressure die casting of molded aluminum or magnesium parts.

Learn more
Other Beryllium Copper Products

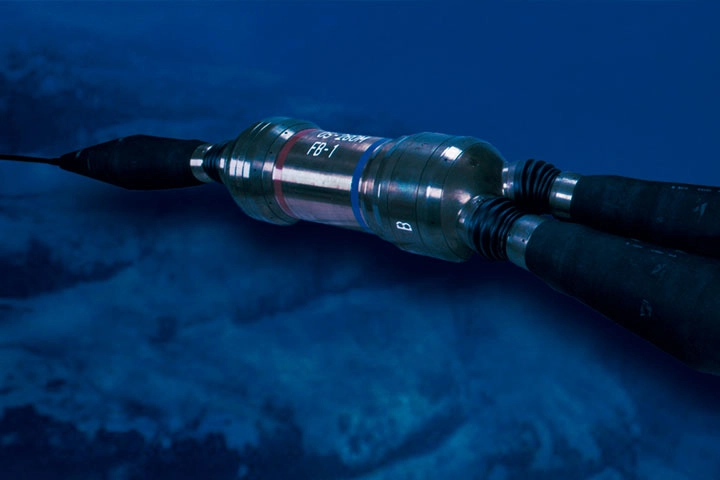

NGK's wide range of products include beryllium copper repeater housing materials for undersea fiber optic cables and aluminum beryllium alloys.
